Overview

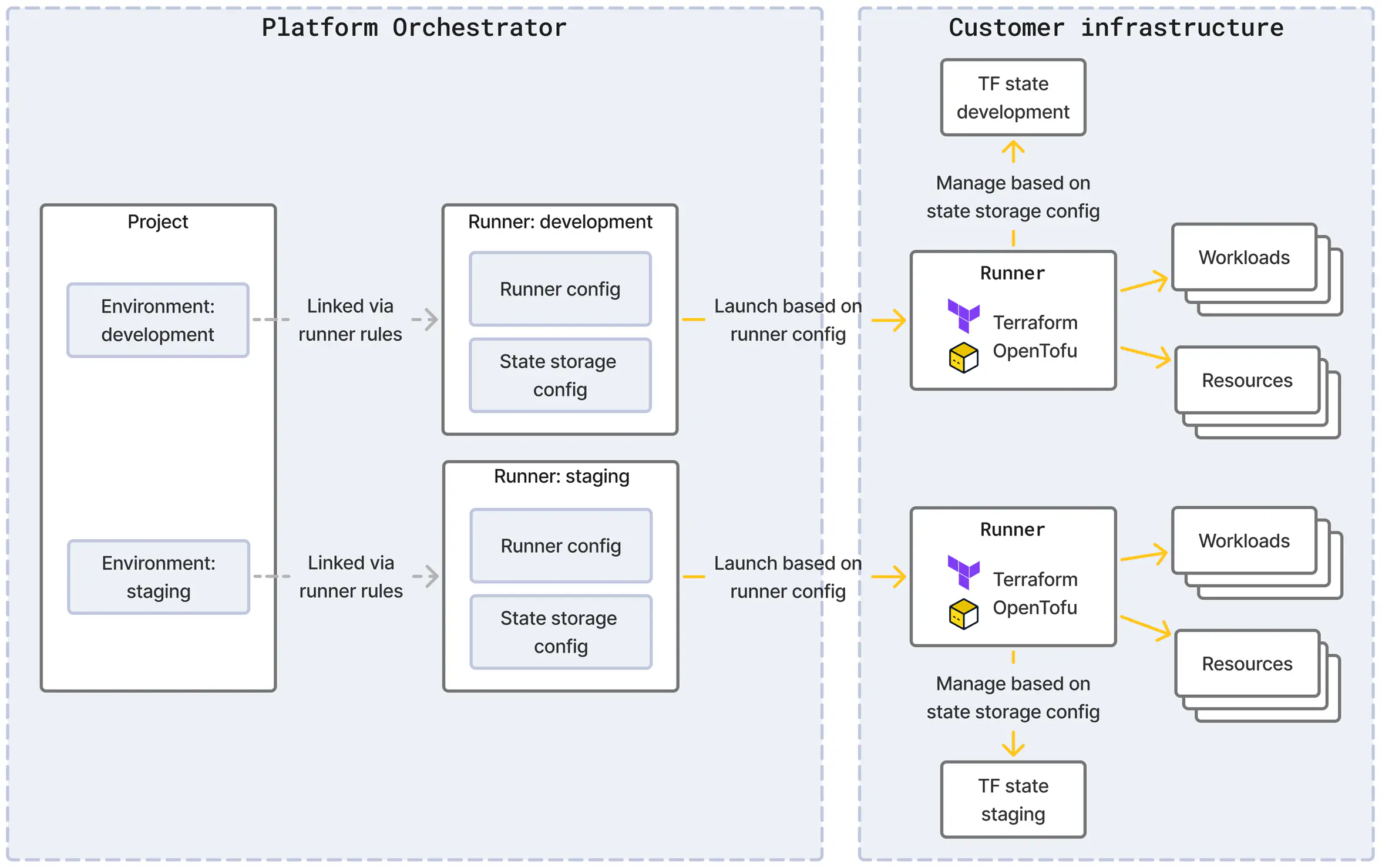

Runners are used by the Orchestrator to execute Terraform/OpenTofu modules securely inside your own infrastructure.

The Orchestrator will launch a runner to execute a deployment into a specific environment. Runners limit the blast radius as you can have as many runners defined as needed and have e.g. different runners for different network segments or permission sets.

There are different runner types to support executing runners on specific kinds of compute, like Kubernetes clusters or serverless container runtimes. Each runner is configured to use a particular instance of such compute.

A runner is either launched by the Orchestrator when it can reach the target compute, or by an agent in the target infrastructure. Both use the same outbound HTTPS runner gateway for bundles, results, and encrypted logs. Agent commands remain buffered while an agent is disconnected.

In addition, a runner uses a particular state storage to maintain Terraform/OpenTofu state in between invocations.

For brevity, we will be using the term “TF” to refer to the combination “Terraform or OpenTofu” throughout this page.

Basic example #

This example creates a runner for execution on a GKE cluster and using a state storage in the runner namespace. It then creates a runner rule for that runner.

The properties of a runner differ depending on the runner type. Refer to each runner type for individual guidance.

• TF
• CLI

resource "platform-orchestrator_kubernetes_gke_runner" "my-gke-runner" {
  id          = "my-gke-runner"
  description = "GKE runner for my-cluster in europe-west3"
  runner_configuration = {
    cluster = {
      name        = "my-cluster"
      project_id  = "my-gcp-project"
      location    = "europe-west3"
      internal_ip = false
      auth = {
        gcp_audience        = "//iam.googleapis.com/projects/123456789012/locations/global/workloadIdentityPools/my-wif-pool/providers/platform-orchestrator-runner"
        gcp_service_account = "platform-orchestrator-runner@my-gcp-project.iam.gserviceaccount.com"
      }
    }
    job = {
      namespace       = "platform-orchestrator-runner"
      service_account = "platform-orchestrator-runner"
    }
  }
  state_storage_configuration = {
    type = "kubernetes"
    kubernetes_configuration = {
      namespace = "platform-orchestrator-runner"
    }
  }
}

resource "platform-orchestrator_runner_rule" "my-gke-runner-rule" {
  runner_id  = platform-orchestrator_kubernetes_gke_runner.my-gke-runner.id
  project_id = "my-project"
}

description: "GKE runner for my-cluster in europe-west3"
runner_configuration:
  type: kubernetes-gke
  cluster:
    name: my-cluster
    project_id: my-gcp-project
    location: europe-west3
    auth:
      gcp_audience: //iam.googleapis.com/projects/123456789012/locations/global/workloadIdentityPools/my-wif-pool/providers/platform-orchestrator-runner
      gcp_service_account: platform-orchestrator-runner@my-gcp-project.iam.gserviceaccount.com
  job:
    namespace: platform-orchestrator-runner
    service_account: platform-orchestrator-runner
state_storage_configuration:
  type: kubernetes
  namespace: platform-orchestrator-runner

# Create the runner
octl create runner my-gke-runner --set-yaml=@gke-runner-config.yaml

# Create an empty runner rule that will always match
octl create runner-rule --set=runner_id=my-gke-runner

Configuration #

A runner configuration consists of these elements:

• TF
• CLI

resource "platform-orchestrator_kubernetes_agent_runner" "my_runner" {
  id          = "my-runner"
  description = "runner for all the envs"
  runner_configuration = {
    key = <<EOT
-----BEGIN PUBLIC KEY-----
MCowBQYDK2VwAyEAc5dgCx4ano39JT0XgTsHnts3jej+5xl7ZAwSIrKpef0=
-----END PUBLIC KEY-----
EOT
    job = {
      namespace       = "default"
      service_account = "platform-orchestrator-runner"
      pod_template = jsonencode({
        metadata = {
          labels = {
            "app.kubernetes.io/name" = "platform-orchestrator-runner"
          }
        }
      })
    }
  }
  state_storage_configuration = {
    type = "kubernetes"
    kubernetes_configuration = {
      namespace = "platform-orchestrator"
    }
  }
}

# Optional description
description: GKE runner for my-cluster in europe-west3

# Runner configuration
runner_configuration:
  # Runner type
  type: kubernetes-gke
  # Further properties are depending on the runner type
  # ...

# State storage configuration
state_storage_configuration:
  type: kubernetes
  # Further properties depending on the state storage type

The properties to set for the runner configuration and state storage configuration vary by their type. Refer to the individual sections for each runner type and state storage type to find the available configuration options and examples.

Runner types #

Runner types describe two independent decisions: where a deployment runs, and how the Orchestrator authenticates to that compute. kubernetes, kubernetes-gke, and kubernetes-eks all execute the same Kubernetes Job. The GKE and EKS variants exist for their cloud-specific discovery and temporary authentication configuration; they are not different execution engines.

Choose kubernetes-agent for private Kubernetes API servers and network segments where inbound control-plane access is undesirable. Choose serverless-ecs when ECS Fargate, rather than Kubernetes, is the execution topology. Existing cloud-specific Kubernetes types remain supported for compatibility, but new automation should treat them as Kubernetes authentication strategies rather than assume different runner behavior.

AKS does not require a separate execution type. Use kubernetes when the data plane can reach its API, or kubernetes-agent when the agent should own local cluster access. A future major API could represent GKE and EKS as authentication strategies under one Kubernetes runner, but removing the existing types now would break runner resources and provider schemas without changing execution behavior.

Available runner types are:

• kubernetes
• kubernetes-agent
• kubernetes-aks
• kubernetes-eks
• kubernetes-gke
• serverless-ecs
• vm

State storage types #

Available state storage types are:

• azurerm
• gcs
• kubernetes
• s3

Compatibilty matrix #

Not all runner types can technically use every state storage type. The compatibility matrix shows the supported combinations.

Manage runners #

Manage runners using the octl CLI:

octl create runner my-runner --set-yaml=@my-runner-config.yaml   # Create a new runner
octl get runner my-runner                                        # Get details on a runner
octl get runners                                                 # List all runners of your organization
octl update runner my-runner --set-yaml=@gke-runner-config.yaml  # Update a runner with a runner config
octl delete runner my-runner                                     # Delete a runner

Runners and environments #

Each environment must have exactly one runner linked to it as a result of the runner rules in order to perform a deployment into that environment.

The runner creates the link to the Terraform/OpenTofu state for that environment through its state storage configuration.

The environment remains linked to a runner even when the runner rules change until the refresh_runner API is called on the environment. This is because changing a runner may lead to dropping access to the previously used Terraform/OpenTofu state and thus a potentially undesired destruction of resources.

Refresh the runner for an environment #

An environment remains linked to a runner even when the runner rules change. Execute the refresh_runner command on the environment to re-assign a runner based on the current runner rules.

Use the dry_run flag to test the result of the command without applying any change.

export PO_API_URL=https://api.orchestrator.example.com

curl ${PO_API_URL}/orgs/my-org/projects/my-project/envs/my-environment/actions/refresh_runner \
  -X POST \
  -H "Authorization: Bearer ${PO_AUTH_TOKEN}" \
  -H "Content-Type: application/json" \
  -d '
{
  "dry_run": false
}'

If a runner could be identified for the environment, the command will return that runner’s id.

If no runner could be identified, the command will return an error and the environment will remain associated with the previous runner.

Runner agent #

For each runner type, the Orchestrator either launches runners itself or uses an agent component in the target infrastructure.

Direct: If the target compute for the runner execution is reachable from the Orchestrator, the data plane can create a runner itself. This applies, for example, to runner types using a cloud service with a reachable API.

Agent: If the target compute is not reachable from the Orchestrator, install the runner agent in the target infrastructure. The agent makes outbound HTTPS requests to the runner gateway. Commands remain buffered while the agent is disconnected. The agent launches runner Jobs in its local compute; those Jobs return results and encrypted logs through the same HTTPS gateway. They never receive broker credentials.

Runner image #

A runner is based on a container image which is pulled from the public source ghcr.io/stellwerk-labs/platform-orchestrator-runner by default, using one of the recent versions. The most current available version is 2.0.0.

You may need to use a custom container image to:

• Pin an image to a specific version
• Pull from ECR or other private registries
• Use an image with custom tooling

The runner execution environment, e.g. a Kubernetes cluster, serverless runtime, or other compute, must be able to pull images from that source.

If you wish to pin the runner version or self-host the image in your own registry and have the runner pull from there, you can override the image property in your runner configuration.

  runner_configuration = {
    job = {
      pod_template = jsonencode({
        spec = {
          containers = [
            {
              name            = "main"
              image           = "my-own-registry.com/platform-orchestrator/platform-orchestrator-runner:vx.y.z"
              imagePullPolicy = "IfNotPresent"
            }
          ]
          imagePullSecrets = [
            {
              name = "regcred"
            }
          ]
        }
      })
    }
  }

runner_configuration:
  job:
    pod_template:
      spec:
        containers:
          - name: main
            image: my-own-registry.com/platform-orchestrator/platform-orchestrator-runner:vx.y.z
            imagePullPolicy: IfNotPresent
        imagePullSecrets:
          - name: regcred

  runner_configuration = {
    job = {
      # Custom container image name
      image = "my-own-registry.com/platform-orchestrator/platform-orchestrator-runner:vx.y.z"
      # See other required properties in the ECS runner docs
    }
  }

runner_configuration:
  type: serverless-ecs
  job:
    # Custom container image name
    image: my-own-registry.com/platform-orchestrator/platform-orchestrator-runner:vx.y.z
    # See other required properties in the ECS runner docs
    ...

When self-hosting the runner image in your image registry, you are responsible for keeping the available version up to date.

Create a custom image #

Minimal Docker image

Your custom image should inherit from the platform-orchestrator-runner image to ensure compatibility:

# Use a pinned version of the official Orchestrator runner
FROM ghcr.io/stellwerk-labs/platform-orchestrator-runner:vx.y.z


# Add your customizations here (certificates, tools, or configurations as needed)
...

# Everything else is inherited:
# - Tools, configurations (eg. OpenTofu)
# - Entrypoint: ["/opt/runner/runner"]
